The zirconium & zirconium alloy bar and wire are manufactured to ASTM B550 covering three grades: Grade R60702: unalloyed zirconium, Grade R60704: zirconium-tin, Grade R60705: zirconium-niobium. The material can be either hot finished or cold finished, often in annealed condition. The Zr & Zr alloy bar or wire may be furnished in round, square, octagon, hexagon or flat shapes. Generally, the delivery conditions include non-descaled, descaled, descaled & pickled, turned, ground or polished.

Definition of Zirconium & Zirconium Alloy Bar and Wire

• Bar: a hot rolled, forged, or cold worked semi-finished solid section product whose cross sectional area is equal to or less than 16 inch² [10323 mm²]; rectangular bar must be less than or equal to 10 inch [254 mm] in width and greater than 0.1875 inch [4.8 mm] in thickness.

•

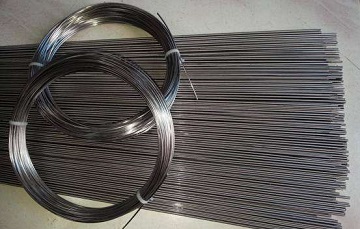

  Zirconium Gr. R60702 wires, ASTM B550 unalloyed zirconium.

  Wire: rounds, flats, or special shapes less than or equal to 0.1875 inch [4.8 mm] in thickness or major dimension.

Chemical Composition Requirements

Element	ASTM B550 Zr & Zr Alloy Grades
	R60702	R60704	R60705
Zirconium(+Hf)	≥99.2	≥97.5	≥95.5
Hafnium	≤4.5	≤4.5	≤4.5
Iron+Chromium	≤0.2	0.2~0.4	≤0.2
Tin	-	1.0~2.0	-
Hydrogen	≤0.005	≤0.005	≤0.005
Nitrogen	≤0.025	≤0.025	≤0.025
Carbon	≤0.05	≤0.05	≤0.05
Niobium	-	-	2.0~3.0
Oxygen	≤0.16	≤0.18	≤0.18

*All values are in weight percentage.

Mechanical Properties of Zr & Zr Alloy Bar and Wire

ASTM B550	Tensile Strength, min.		Yield Strength, min.		Elongation
Grade	ksi	MPa	ksi	MPa	min. %
R60702	55	380	30	205	16
R60704	60	415	35	240	14
R60705	80	550	55	380	16

*The tensile test shall be conducted at room temperature. Specimens shall be annealed.
